Zebra ZD420 Label Printer Set up

Power and Data Connection

• Connect the printer to a power outlet using the supplied adapter
• USB connection
  • Plug the printer into a USB port on your computer
  • Press the power button on the printer. Your computer will attempt to recognize the printer.
• This printer can also be connected to your local network.

Add the Printer

• Mac

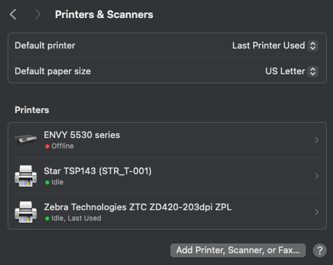

  • Open System Settings > Printers & Scanners

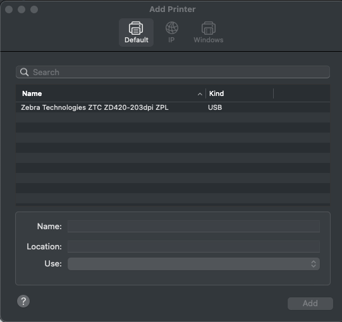

  • Click the Add Printer, Scanner, or Fax… button
  • Your printer should appear in the list

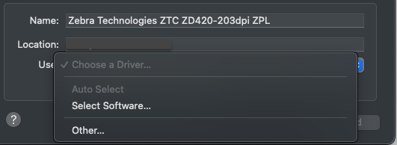

  • Select the printer, then click Choose a Driver…
  • Click on Select Software… and then select Zebra ZPL Label Printer from the list. Click OK

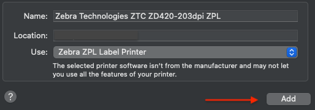

  • Click Add
  • Your printer should now appear in the list

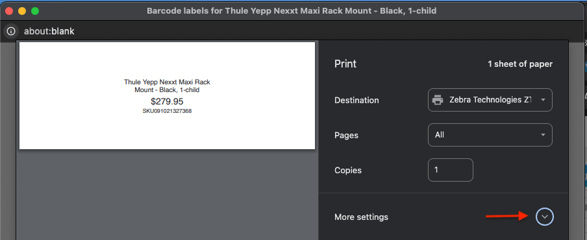

• In the Chrome browser print dialogue that appears, make sure the correct printer is selected, then click More settings

• • Scroll down and click Print using system dialog…
  • In the macOS system print dialogue, click on Paper size and select the correct label size from the list.

• • Make sure Portrait is selected under Orientation
  • Click Print to ensure that your label prints at the correct size and alignment.

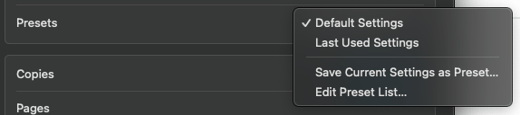

• • Presets are set to Default Settings.  Change this to Last used settings or Save Current Settings as Preset… to save your paper size and orientation selections

Troubleshooting

• Workstand currently supports three price label sizes
  • 2.25 in (w) x 1.25 in (h)
  • 2.00 in (w) x 1.00 in (h)
  • 1.25 in (w) x 1.00 in (h)
• Labels misaligned? Reset the printer by turning it off while holding the feed button, turn it on, and release after the light flashes.

• Not printing? Confirm the right driver is selected and the label format is ZPL-compatible.
• No barcode? Products with no GTIN (UPC or EAN) do not print barcodes on the price label. Edit the product and add one to the product to make sure a barcode prints on the label.
• If your product has a SKU this appears on the label, if GTIN is not present.
